Celestion TF0615 6" bass/mid
Achieves optimal performance in compact 2 way enclosures with a crossover around 5KHz
R1,675.00

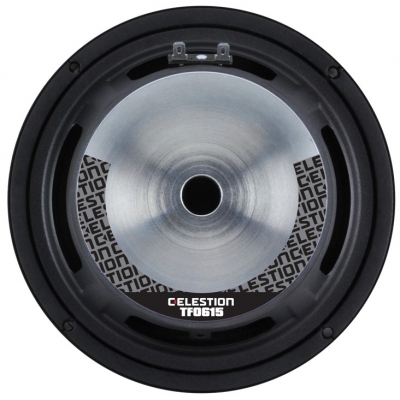

The Celestion TF0615 is a 6 inch general purpose bass/mid driver ideally suited to two way system designs and features the following design highlights:
A rugged steel chassis which is extremely rigid yet lightweight.
A vented magnet assembly for enhanced cooling
A Kevlar loaded cone with a sealed "M roll" surround for reduced distortion at maximum excursion.
A high temperature voice coil with Polyimide former for increased (150W EIA) power handling.
General specifications
A rugged steel chassis which is extremely rigid yet lightweight.
A vented magnet assembly for enhanced cooling
A Kevlar loaded cone with a sealed "M roll" surround for reduced distortion at maximum excursion.
A high temperature voice coil with Polyimide former for increased (150W EIA) power handling.
General specifications
| Nominal Diameter | 6 inch, 152 mm |
| Power rating | 100W AES, 200W continuous, 400W peak |
| Nominal Impedance | 8 Ohms |
| Sensitivity | 94 dB 1W 1M |
| Frequency Range | 85-6,000 Hz |
| Resonance Frequency | 104.7 Hz |
| Xmax | 2.5 mm |
| Qts | 0.608 |
| Vas | 6.411 l |
| Voice Coil Diameter | 1.5", 38 mm |
| Voice Coil Construction | Round copper |
| Former Material | Polyimide |
| Cone Material | Kevlar loaded paper |
| Chassis Type | Pressed steel |
| Magnet | Ferrite, 17 Oz, 0.48 Kg |
| Total Weight | 3.1 lb, 1.4 Kg |
More Info
- Availability: Out of Stock
- Model: TF0615
-
Manufacturer:
