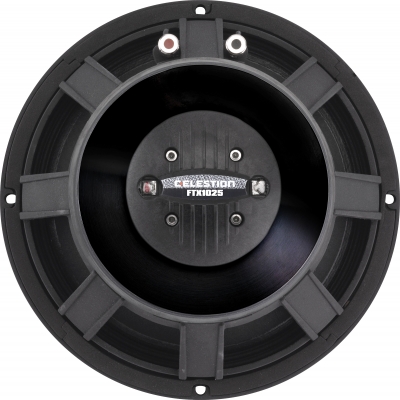

Celestion FTX1025 Co-axial full range

10" cast aluminium chassis full range speaker with common motor co-axial HF
R7,650.00
Qty:
  • Out of Stock
Print
Celestion's FTX series common motor co-axials offer significant advantages over conventional 2 way designs as well as over other co-axial drivers whilst retaining the improved off axis response expected in a co-axial system.

Some co-axial systems mount a separate HF unit in front of the LF cone which causes "shading' of midrange output as well as reflections back onto the cone.  Other designs place a compression driver behind the main magnet assembly and use the LF cone as a conical horn thereby eliminating the shading and reflection problems of the simple co-ax system.  Celestion have taken this one step further by utilising the main LF magnet to drive the compression driver diaphragm as well as the LF system.  This ensures accurate time alignment across the frequency range whilst maintaining excellent off axis response and compact cabinet design.

With features such as a cast chassis, edgewound voice coils, sound castle diaphragm clamping and a demodulation ring the FTX1025 offers the best of Celestion design and manufacture.

General Specifications
LFHF
Nominal Diameter10 inch, 254 mm
Power rating600W continuous80W continuous
Nominal impedance8 Ohms8 Ohms
Sensitivity96dB 1W 1M104dB 1W 1M
Frequency Range60-5,000 Hz1,000-20,000 Hz
Resonance Frequency71.5 Hz
Xmax3 mm
Qts0.44
Minimum crossover point2,000 Hz
Voice Coil Diameter2.5", 64 mm1.4", 34 mm
Voice Coil ConstructionEdgewound Copper clad AluminiumCopper clad Aluminium
Former MaterialGlass Fibre
Cone/DiaphragmKevlar loaded paperOne piece Polyimide
MagnetFerrite, 1.5 Kg
Weight4.5 Kg

More Info

NB  SEPARATE CROSSOVER REQUIRED
  • Availability: Out of Stock
  • Model: FTX1025
  • Manufacturer: Celestion
