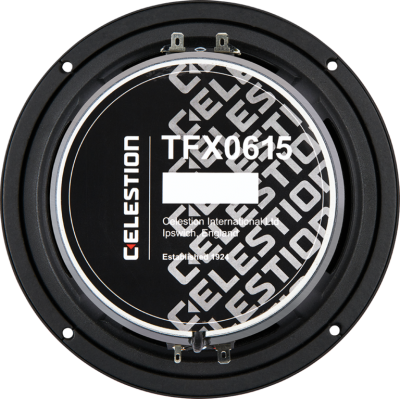

Celestion TFX0615 Co-axial full range
6.5" high power handling full range speaker with co-axial dome tweeter
R2,550.00
Celestion's TFX series co-axials offer highly cost effective speakers with wide dispersion and high power handling.
The silk dome tweeter provides smooth natural HF and is mounted inside the LF voice coil to provide true co-incident time aligned performance. Note that no crossover is provided, a suitable design can be downloaded on this link. TFX0615-Crossover
General Specifications
The silk dome tweeter provides smooth natural HF and is mounted inside the LF voice coil to provide true co-incident time aligned performance. Note that no crossover is provided, a suitable design can be downloaded on this link. TFX0615-Crossover
General Specifications
| LF | HF | |
| Nominal Diameter | 5 inch, 125 mm | |
| Power rating | 300W continuous | 20W continuous |
| Nominal impedance | 8 Ohms | 8 Ohms |
| Sensitivity | 94dB 1W 1M | 98dB 1W 1M |
| Frequency Range | 100-6,000 Hz | 1,700-20,000 Hz |
| Resonance Frequency | 97 Hz | |
| Xmax | 3.75 mm | |
| Qts | 0.376 | |
| Minimum crossover point | 2,200 Hz | |
| Voice Coil Diameter | 1.5", 38 mm | 1", 25 mm |
| Voice Coil Construction | Copper clad Aluminium | Copper clad Aluminium |
| Former Material | Polyimide | |
| Cone/Diaphragm | Kevlar loaded paper | Silk dome |
| Magnet | Ferrite, 0.65Kg | |
| Weight | 1.6 Kg |
More Info
NB SEPARATE CROSSOVER REQUIRED- Availability: Out of Stock
- Model: TFX0615
-
