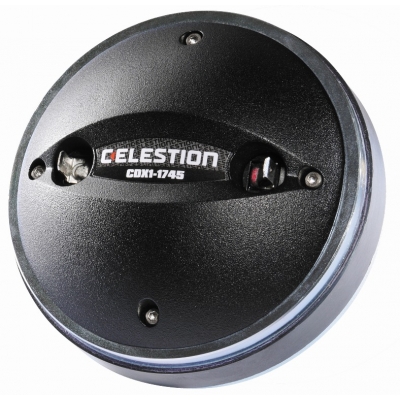

Celestion CDX1-1745 compression driver 8 Ohm

1" throat bolt on driver with 44 mm voice coil and one piece PETP diaphragm and surround
R3,000.00
Qty:
Print
Celestion have built a reputation for some of the best compression drivers available today with more that 1,000 units sold every day.  The CDX1-1745 is typical of Celestion's expertise in the field, it features a one piece PETP diaphragm and surround with "sound castle" clamping which provides high sensitivity, smooth frequency response and good power handling.  This driver is suggested for use in high power 3 way systems or in 2 way designs with 12" woofers.

General Specifications
Type1 inch throat bolt on
Power rating80W continuous
Nominal impedance8 Ohms
Sensitivity110 dB 1W 1M
Frequency range1,200-20,000 Hz
Suggested minimum crossover point2,200 Hz
MagnetFerrite
Diaphragm and surroundOne piece PETP
Voice coil typeEdgewound Copper clad Aluminium
Voice coil diameter1.75", 44 mm
Horn mounting4 x M6 threaded holes on 76 mm PCD
Weight5.1 lb, 2.3 Kg

More Info

  • Availability: 2 In Stock
  • Model: CDX1-1745 8 Ohm
  • Manufacturer: Celestion
